Overview and Objective

This project, initiated in 2021, aims to develop a computer vision system capable of detecting and localizing lungs in medical images such as CXR (Chest X-Ray) or CT scans. By accurately identifying the lung boundaries, the model will lay the foundation for further analysis, including detecting lung diseases like Covid-19. This detection system represents the first step in building a more comprehensive tool for diagnosing and monitoring various conditions affecting internal organs.

The primary goal is to create a reliable computer vision model that can accurately detect lungs in medical images. This system will not only assist in lung health analysis but will also serve as a basis for detecting other internal organs, enabling more comprehensive diagnostic capabilities for a range of medical conditions. However, for now, the project's focus remains solely on lung detection.

(back to top)

Motivation and Inspiration

The Covid-19 pandemic served as the primary catalyst for this project. Witnessing the global impact of the virus and the urgent need for advanced diagnostic tools inspired me to contribute to the development of a scalable and accurate detection system. This project represents a foundational step toward creating a Covid-19 detection model by focusing on lung detection in X-ray images. Accurate lung detection is crucial for isolating the target area, enabling more precise and efficient model training for disease identification.

Moreover, this project is not only a step toward Covid-19 detection but also a proof of concept demonstrating the potential of deep learning in medical imaging. It shows that specific organs or objects within the human body can be accurately detected through CXR or other X-ray images if the model is trained with appropriate data. This capability has far-reaching implications beyond Covid-19, paving the way for detecting various other conditions and abnormalities in multiple organs. It enhances the effectiveness of diagnostic tools and supports advancements in personalized medicine.

(back to top)

Workflow

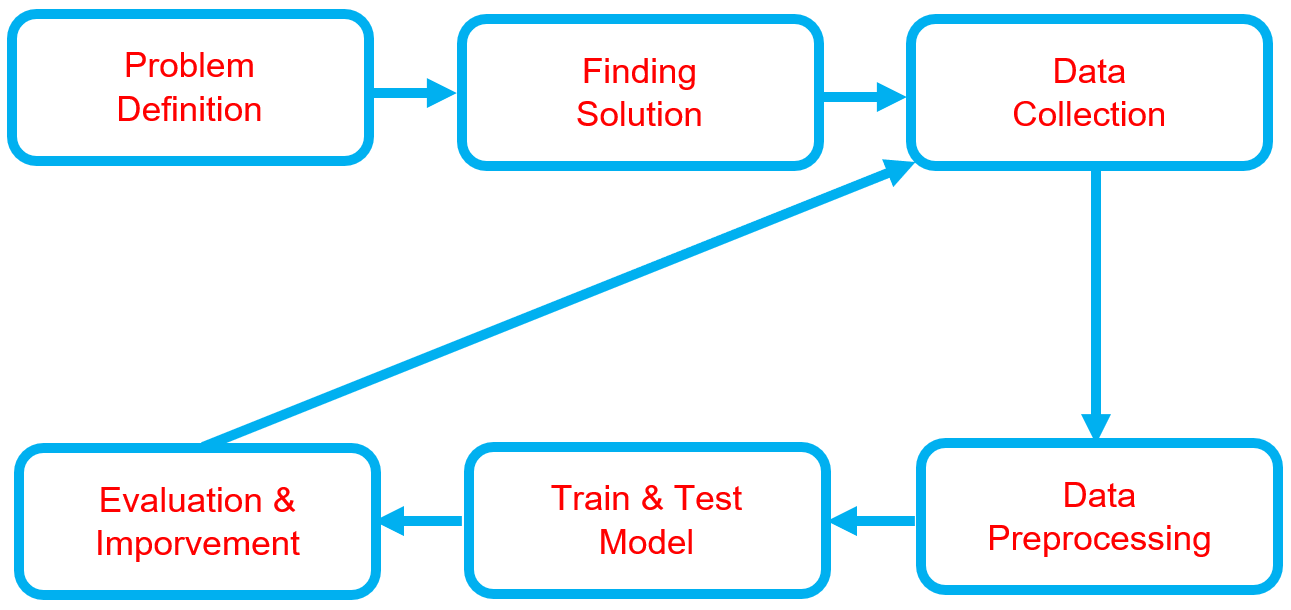

Below is the workflow on how my project works

Logo

  1. Problem Definition

    • Clearly define the problem that needs to be solved.

  2. Finding Solution

    • List all potential solutions and choose one to implement.
    • Set objectives (e.g., classification accuracy, minimizing prediction errors) and constraints (e.g., time, hardware limitations).
    • Create a plan outlining the expected outcomes.

  3. Data Collection

    • Gather and prepare a relevant dataset aligned with the problem.

  4. Data Preprocessing

    • Split the data into training, validation, and test sets.
    • Perform labeling or annotation where necessary.

  5. Train & Test Model

    • Choose a deep learning model architecture based on the problem (e.g., CNN for images, RNN/LSTM for sequential data, Transformer for NLP).
    • Train the model, setting targets for accuracy, loss, and other performance metrics.
    • Test the model using the test dataset to evaluate its performance.
    • Conduct real-world testing with external datasets to ensure the model's accuracy and applicability.

  6. Evaluation & Improvement

    • Evaluate inputs, processes, outputs, and outcomes.
    • Identify challenges.
    • Discover insights.
    • Make necessary improvements by addressing challenges, adding new features, or refining results based on evaluation feedback.
    • Set a plan for future developments.

(back to top)

Solution and Technology Stack

Used tools:

  1. TensorFlow Object Detection API
  2. Pretrained Model
  3. Python library : TensorFlow OpenCV scikit-learn NumPy labelImg
  4. Hardware : Laptop Acer Predator Helios 300, Intel-12700H, 48 GB Ram, Gen4 SSD, RTX3070Ti Laptop GPU, 8 GB Vram

(back to top)

Project Details and Results

  1. Data Collection

    The dataset utilizing NIH Chest X-ray link contains over 112,000 Chest X-ray images from more than 30,000 unique patients. I have used only 400 images as a sample, which is considered sufficient for single-object detection.

  2. Labelling

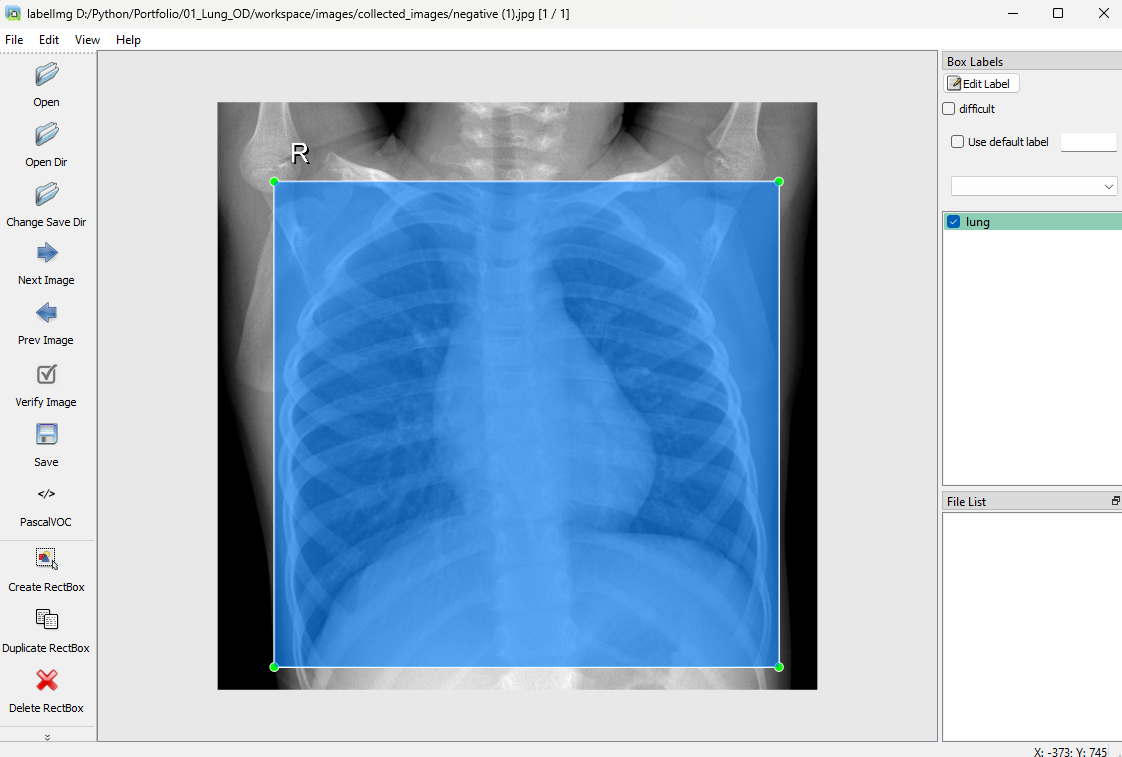

    Image labeling using LabelImg in Python involves manually annotating images by drawing bounding boxes around objects of interest and saving the coordinates and class labels in XML.

    Logo

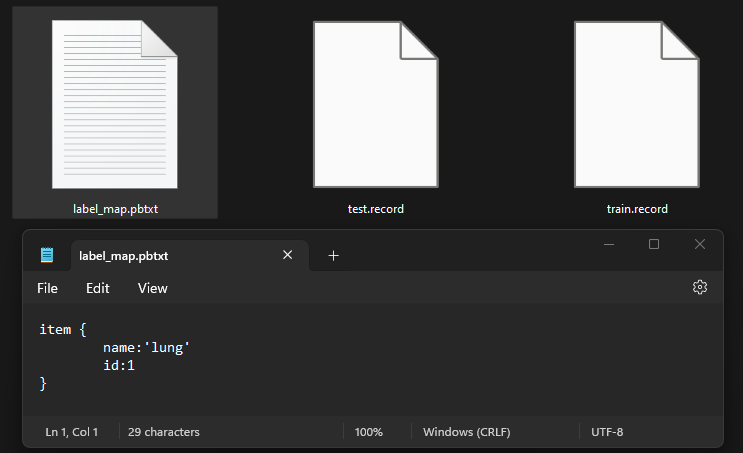

  3. Generate Training Records

    TFRecords generation in Python involves converting datasets, such as images and annotations, into a serialized binary format optimized for TensorFlow, enabling efficient data storage and access during model training and evaluation.

    import pathlib

MAIN_PATH = str(pathlib.Path().resolve())
WORKSPACE_PATH = MAIN_PATH + "\\workspace"
SCRIPTS_PATH = MAIN_PATH + "\\scripts"
ANNOTATION_PATH = WORKSPACE_PATH + "\\annotations"
IMAGE_PATH = WORKSPACE_PATH + "\\images"

    labels = [
    {"name" : "lung", "id" : 1}
]

with open(ANNOTATION_PATH + "\label_map.pbtxt", "w") as f:
    for label in labels:
        f.write("item { \n")
        f.write("\tname:\"{}\"\n".format(label["name"]))
        f.write("\tid:{}\n".format(label["id"]))
        f.write("}\n")

    !python {SCRIPTS_PATH + "\\generate_tfrecord.py"} -x {IMAGE_PATH + "\\train"} -l {ANNOTATION_PATH + "\\label_map.pbtxt"} -o {ANNOTATION_PATH + "\\train.record"}
!python {SCRIPTS_PATH + "\\generate_tfrecord.py"} -x {IMAGE_PATH + "\\test"} -l {ANNOTATION_PATH + "\\label_map.pbtxt"} -o {ANNOTATION_PATH + "\\test.record"}

    Logo

  4. Training Model using TensorFlow OD API

    In this section, the dataset was trained to detect lungs as an object, and the trained model was saved by following these steps:

    • Generate the training command using this code.

      APIMODEL_PATH = "\\TensorFlow\\models" # set up your own path
WORKSPACE_PATH = MAIN_PATH + "\\workspace"
MODEL_PATH =  WORKSPACE_PATH + "\\models"
CUSTOM_MODEL_NAME = "my_ssd_mobnet" # used pre-trained model
n = 5000

      print("""python {}\\research\\object_detection\\model_main_tf2.py --model_dir={}\\{} --pipeline_config_path={}\\{}\\pipeline.config --num_train_steps={}""".format(APIMODEL_PATH, MODEL_PATH, CUSTOM_MODEL_NAME, MODEL_PATH, CUSTOM_MODEL_NAME, n))

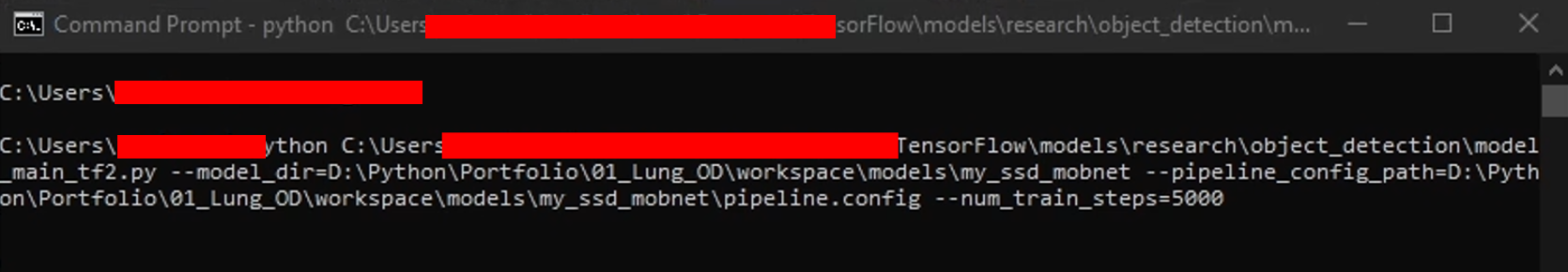

    • Copy and paste the training command into the command prompt, then press enter to start the training process.

      Logo

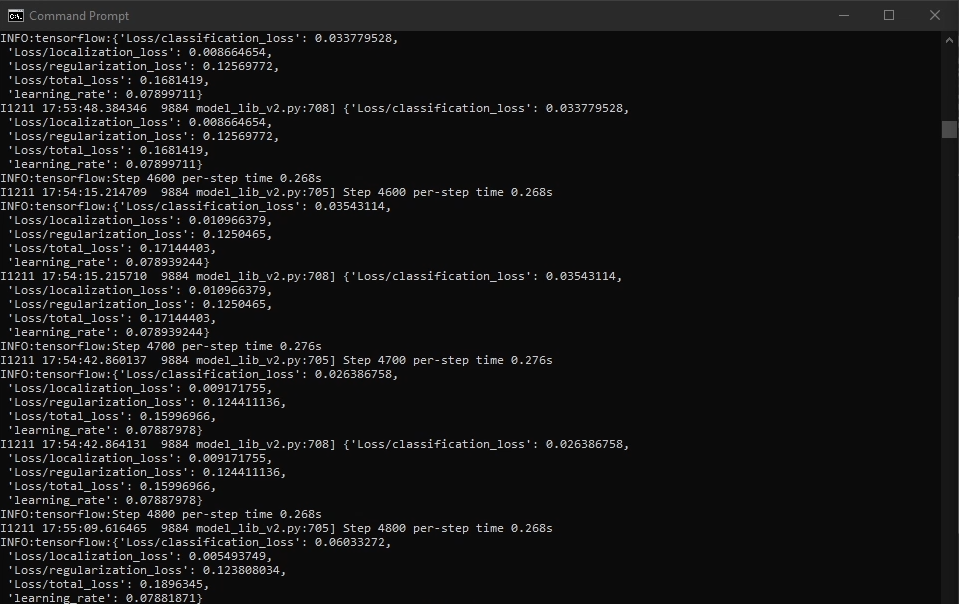

    • Training process

      Logo

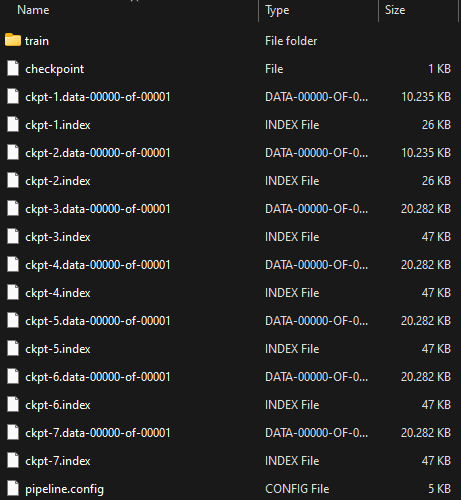

    • Once training is complete, you can check the trained model as shown below. This model can be used to perform various detection tasks.

      Logo

  5. Detection Test

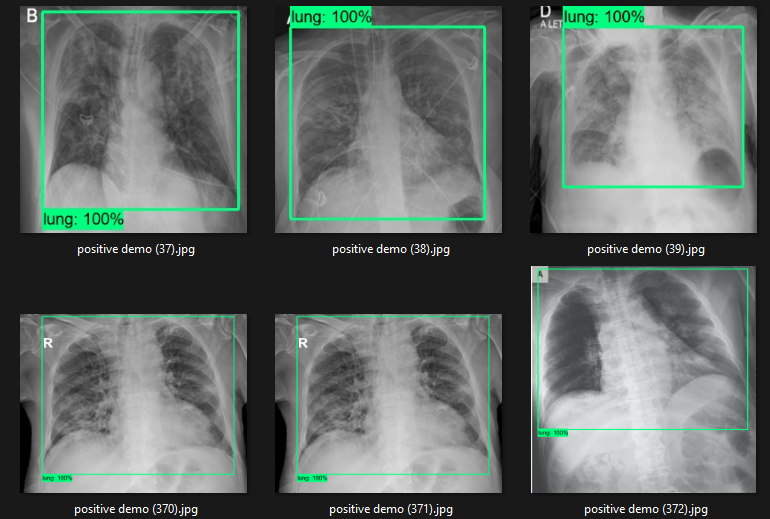

    The actual testing will use images different from those used in training. In this step, the code will attempt to detect 1,000 images, generating bounding boxes, labels, and detection scores on the images. You can review the detection results below.

    Logo

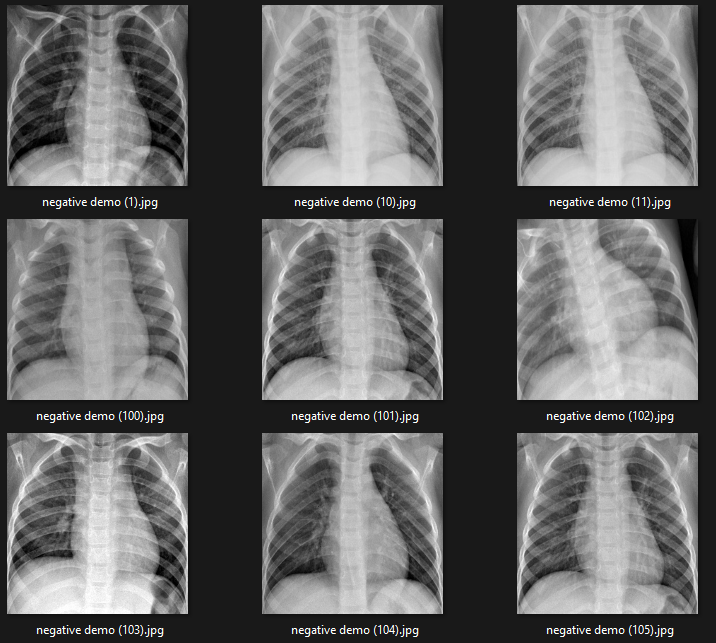

  6. Cropping Test

    This is an image cropping test using the trained model. You can find the results below.

    Logo
